Adopt constant power air cooling Italian brand Hiteco 9.5kw ATC spindle motor, Rotary ATC station, high speed, low noise and long life. X, Y axes are using gear and rack transmission and Z axis is with precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
This machine is a heavy duty CNC router machine, equipped with rotary auto tool changing system, high performance, especially suitable for advertisement and wood furniture industrial processing. The combination make it an ideal choice for machining acrylic, aluminum and other non-ferrous metal, wood, MDF, plywood, plastic, honeycomb.
This series utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.
Main Features
Industrial steel pipe frame with strong legs, with stable moving, low noise and high precision.
CNC control system: Syntec 6MB
Stable air cooling ATC spindle motor Hiteco 9.5kw
Transmission: TBI high precision Ball screw for Z axis, and WMH Herion Rack & pinion on X, Y axis
Cast steel gantry stand
Rotary 8 ATC Station
High precision and durable guide rail imported from Taiwan
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools
Equipped with Taiwan Gear Speed reducer device, which makes the corner cutting and engraving with smoother edges.
Japanese servo motor and drivers & planetary gearbox
Double bags of dust collector
Technical Parameters
Model
NC-2513ATC
Table Size
1300x2500mm
Working Size
1300x2500x200mm
Max. Material Height
200mm
Spindle Power
Hiteco 9.5KW ATC
Psi/Cfm
90/16
Tool Holder
ISO 30,ER32
ATC Tool Station
8 position Rotary
Speed RPM
0-24000rpm
Driver
Japanese Servo motors and drivers
CNC
Syntec 6MB
Tool Diameter
Ø3.175,Ø4,Ø6, Ø8, Ø12.7
Mechanical Structure
Square Steel Pipe
Transmission
TBI Ball Screw for Z ; Germany Herion Helical Gearbox and Rack & Pinion for X,Y
Guide Rails
Imported Linear Guide Rails
Repositioning Accuracy
<0.03mm/300mm
MAX. Engraving Speed
45000mm/min
Table Top
Vacuum Table
Vacuum Pump
Air cooling 7.5kw
File Transfer
USB or Net-work
File Format
G Code or HPGL
Power Supply
380V,50-60Hz
External Form Size
2100x3450x2180*2100mm
Net/Gross Weight
2000/2500kg
Available materials
This machine has a high speed CCD positioning camera, It can cut wood, MDF, organic glass, acrylic, plastic material, marble, Aluminum Composite Sheet, Aluminum and other hard material, but also can cut PVC, foam, KT board, rubber sheet, cardboard, Styrofoam board, ABS sheet, corrugated board, paper, reflective film, leather and other soft materials as well.
Application
Professionally used in advertising industry, model industry, toy, art gift, advertisement decoration, building upholster, package printing, wood product, furniture industry and other industries.
Adopt constant power air cooling ATC spindle, high speed, low noise and long life. X, Y axes are using gear and rack transmission and Z axis is with precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
This machine is a heavy duty CNC router machine, equipped with auto tool changing system, high performance, especially suitable for advertisement and wood furniture industrial processing.
This series utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.
Main Features
Industrial steel pipe frame with strong legs, with stable moving, low noise and high precision.
Taiwan Syntec 6MB control cabinet system
Stable air cooling Italian HSD ATC spindle motor 9kw
Transmission: TBI high precision Ball screw for Z axis, and WMH Herion Rack & pinion on X, Y axis
Cast steel gantry stand
8 Position linear ATC Station
High precision and durable guide rail imported from Taiwan
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools
Equipped with Taiwan Gear Speed reducer device, which makes the corner cutting and engraving with smoother edges.
Japanese Servo motor and drivers & planetary gearbox
Double bags of dust collector
Technical Parameters
Model
NC-1325H-ATC
Table Size
1368x3120mm
Working Size
1300x2500x250mm
Max. Material Height
180mm
Spindle Power
HSD 9KW ATC Spindle
Psi/Cfm
90/16
Tool Holder
ISO 30,ER32
ATC Tool Station
Linear 8 position
Speed RPM
0-24000rpm
Motor and Driver
Japanese Servo motors and drivers
CNC
Syntec 6MB Control Cabinet
Tool Diameter
Ø3.175,Ø4,Ø6,Ø12.7
Mechanical Structure
Square Steel Pipe
Transmission
WMH Herion Rack & pinion on X,Y; TBI Ball Screw on Z
Professionally used in advertising industry, model industry, toy, art gift, advertisement decoration, building upholster, package printing, wood product, furniture industry and other industries.
Adopt constant power air cooling Italian brand 9kw HSD ATC spindle, oscillating knife and CCD camera, high speed, low noise and long life. X, Y axes are using gear and rack transmission and Z axis is with precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
This series utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industrial standard solid modeling software packages.
Main Features
Industrial steel pipe frame with strong legs, with stable moving, low noise and high precision.
Professional special purpose CNC
Stable air cooling ATC spindle motor HSD 9kw
Equipped with both high speed oscillating tangential knife and CCD camera
Transmission: TBI high precision Ball screw for Z axis, and WMH Herion Rack & pinion on X, Y axis
Cast steel gantry stand
8 Position linear ATC Station
High precision and durable guide rail imported from Taiwan
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools
Equipped with Taiwan Gear Speed reducer device, which makes the corner cutting and engraving with smoother edges.
Japanese servo motor and drivers & planetary gearbox
Double bags of dust collector
Technical Parameters
Model
NC-1325CCD
Table Size
1368x3120mm
Working Size
1300x2500x250mm
Max. Material Height
180mm
Spindle Power
HSD 9KW ATC
Tangential Knife
Oscillating Knife
Mark Recognition
CCD Camera
Psi/Cfm
90/16
Tool Holder
ISO 30,ER32
ATC Tool Station
Linear 8 position
Speed RPM
0-24000rpm
Driver
Japanese Servo motors and drivers
CNC
Professional special purpose CNC
Tool Diameter
Ø3.175,Ø4,Ø6,Ø12.7
Mechanical Structure
Square Steel Pipe
Transmission
TBI Ball Screw for Z ; Germany Herion Helical Gearbox and Rack & Pinion for X,Y
Guide Rails
Imported Linear Guide Rails
Repositioning Accuracy
<0.03mm/300mm
MAX. Engraving Speed
45000mm/min
Table Top
Special Purpose Vacuum Table with carpet table top
Vacuum Pump
Air cooling 7.5kw
File Transfer
USB or Net-work
File Format
G Code or HPGL
Power Supply
380V,50-60Hz
External Form Size
2100x3460x1950mm
Packing Size
2250x3610x2100mm
Net/Gross Weight
550/800kg
Optional Models
NC-1313CCD, NC-1318CCD,NC-1530CCD, NC-2040CCD
Available materials
This machine has a high speed CCD positioning camera, It can cut wood, MDF, organic glass, acrylic, plastic material, marble, Aluminum Composite Sheet, Aluminum and other hard material, but also can cut PVC, foam, KT board, rubber sheet, cardboard, Styrofoam board, ABS sheet, corrugated board, paper, reflective film, leather and other soft materials as well.
Application
Professionally used in advertising industry, model industry, toy, art gift, advertisement decoration, building upholster, package printing, wood product, furniture industry and other industries.
Adopt constant power water-cooled frequency spindle, high speed, low noise and long life. X, Y axes are using gear and rack transmission and Z axis is with precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
This machine is a heavy duty CNC router machine, low price, high performance, especially suitable for advertisement and wood furniture industrial processing.
This series utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.
Main Features
Industrial steel pipe frame150*150mm strong leg, material thickness 6mm, with stable moving, low noise and high precision.
NC Studio NK-105G3 hand held CNC or computer controlled cabinet system
Stable water cooling spindle motor with choice of Chinese brand, Italy brand and Japanese brand.
High precision and durable guide rail imported from Taiwan
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools
Equipped with Taiwan Gear Speed reducer device, which makes the corner cutting and engraving with smoother edges.
Leadshine Brand Hybrid servo motors
Double bags of dust collector
Perfect auxiliary device: Our CNC router can be optional with vacuum table, which will stick the materials tightly onto the working platform for good processing.
Professionally used in advertising industry, model industry, toy, art gift, advertisement decoration, building upholster, package printing, wood product, furniture industry and other industries.
Adopt constant power air cooling ATC spindle, high speed, low noise and long life. X, Y axes are using gear and rack transmission and Z axis is with precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
This machine is a heavy duty CNC router machine, equipped with auto tool changing system, high performance, especially suitable for advertisement and wood furniture industrial processing.
This series utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.
Main Features
Industrial steel pipe frame with strong legs, with stable moving, low noise and high precision.
WEIHONG NK260 control cabinet system
Stable air cooling ATC spindle motor 9kw
Cast steel gantry stand
8 Position linear ATC Station
High precision and durable guide rail imported from Taiwan
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools
Equipped with Taiwan Gear Speed reducer device, which makes the corner cutting and engraving with smoother edges.
Servo motor and drivers & planetary gearbox
Double bags of dust collector
Technical Parameters
Model
NC-1325ATC
Table Size
1368x3120mm
Working Size
1300x2500x250mm
Max. Material Height
180mm
Spindle Power
Chinese 9KW ATC Spindle Motor
Psi/Cfm
90/16
Tool Holder
ISO 30,ER32
ATC Tool Station
Linear 8 position
Speed RPM
0-24000rpm
Motor and Driver
Leadshine Servo motors and drivers
CNC
WEIHONG NK260
Tool Diameter
Ø3.175,Ø4,Ø6,Ø12.7
Mechanical Structure
Square Steel Pipe
Transmission
Ball Screw for Z ; Helical Gearbox and Rack & Pinion for X,Y
Professionally used in advertising industry, model industry, toy, art gift, advertisement decoration, building upholster, package printing, wood product, furniture industry and other industries.
Adopt constant power water-cooled frequency spindle, high speed, low noise and long life. X,Y axes are using gear and rack transmission and Z axis is with precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
This machine is a heavy duty CNC router machine, low price, high performance, especially suitable for advertisement and wood furniture industrial processing.
This series utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.
Main Features
Industrial steel pipe frame150*150mm strong leg, material thickness 6mm, with stable moving, low noise and high precision.
NC Studio NK-105G3 hand held CNC or computer controlled cabinet system
Stable water cooling spindle motor with choice of Chinese brand, Italy brand and Japanese brand.
High precision and durable guide rail imported from Taiwan
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools
Stepper Motor & Pulley drive for X,Y axis
Double bags of dust collector
Perfect auxiliary device: Our CNC router can be optional with vacuum table, which will stick the materials tightly onto the working platform for good processing.
Professionally used in advertising industry, model industry, toy, art gift, advertisement decoration, building upholster, package printing, wood product, furniture industry and other industries.

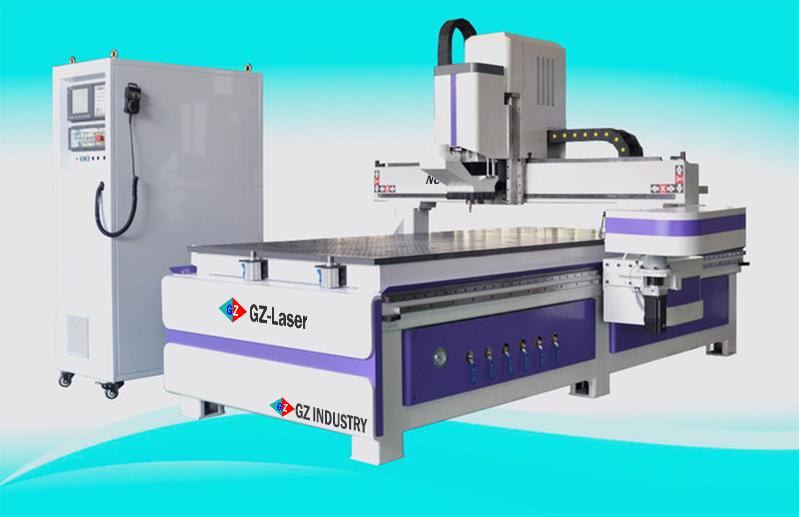

Adopt constant power air cooling ATC spindle, high speed, low noise and long life. X, Y axes are using gear and rack transmission and Z axis is with precision ball screw vice transmission, reasonable structure, stable performance, good weight bearing ability.
This machine is a heavy duty CNC router machine, equipped with auto tool changing system, high performance, especially suitable for advertisement and wood furniture industrial processing.
This series utilizes an industry standard G-code for control functions that allows easy interfacing with all major CAD/CAM software and industry standard solid modeling software packages.
Main Features
Industrial steel pipe frame with strong legs, with stable moving, low noise and high precision.
Taiwan Syntec 6MB control cabinet system
Stable air cooling Italian HSD ATC spindle motor 9kw
Transmission: TBI high precision Ball screw for Z axis, and WMH Herion Rack & pinion on X, Y axis
Cast steel gantry stand
16 Position linear ATC Station
High precision and durable guide rail imported from Taiwan
Linear Square Guide: 20MM linear square guide with double bearings, an ultra-heavy type that achieves a deep grooved raceway with its diameter more approximate to the ball diameter and has high rigidity, vibration and shock resistance, and damping characteristics, which are required for machine tools
Equipped with Taiwan Gear Speed reducer device, which makes the corner cutting and engraving with smoother edges.
Japanese Servo motor and drivers & planetary gearbox
Professionally used in advertising industry, model industry, toy, art gift, advertisement decoration, building upholster, package printing, wood product, furniture industry and other industries.
