Optical Communication Parts Laser Welding

Application Description

Optical Communication Specification
High: 0～100mm
Diameter:φ0～φ80mm
Optical Communication Parts TOSA, BOSA, ROSA, TO-CAN.

Advantage
Welding points: 4 points/time
Superior rate ≥99.8%
Productivity/efficiency≥2PPM

Features

1. Optical Communication Laser Welding System is used for TO tube and Tube Core uniform distribution of 4 points spot welding. The working table can be automatically raised and rotated, and the welding of multiple layers or points can be achieved automatically. Controlled by PLC can be compatible with uniform distribution of 2 points or 3 points spot welding.

2. The worktable with PLC control has friendly operation interface and excellent ergonomics. With CCD coaxial monitoring system and image segmentation device, through the switching operation, the quality of each welding points can be observed simultaneously or separately on a monitor.

System Including

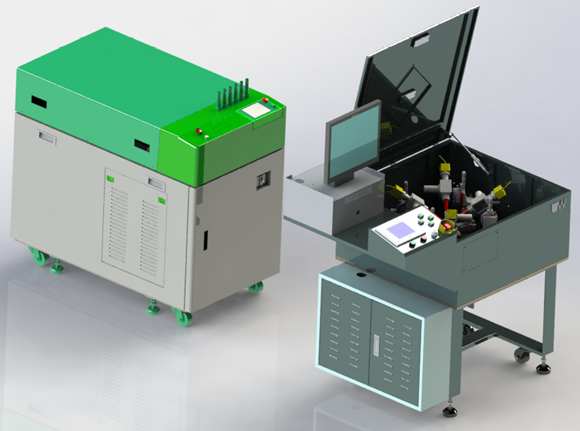

This optical communication laser welding system includes laser welding machine, laser head, adjustment frame of laser head (4D), monitor, electric cabinet, workstation, etc.

Parameters
